BC547B TRANSISTOR ( Pack of 10 )

30.00

   QUICK OVERVIEW

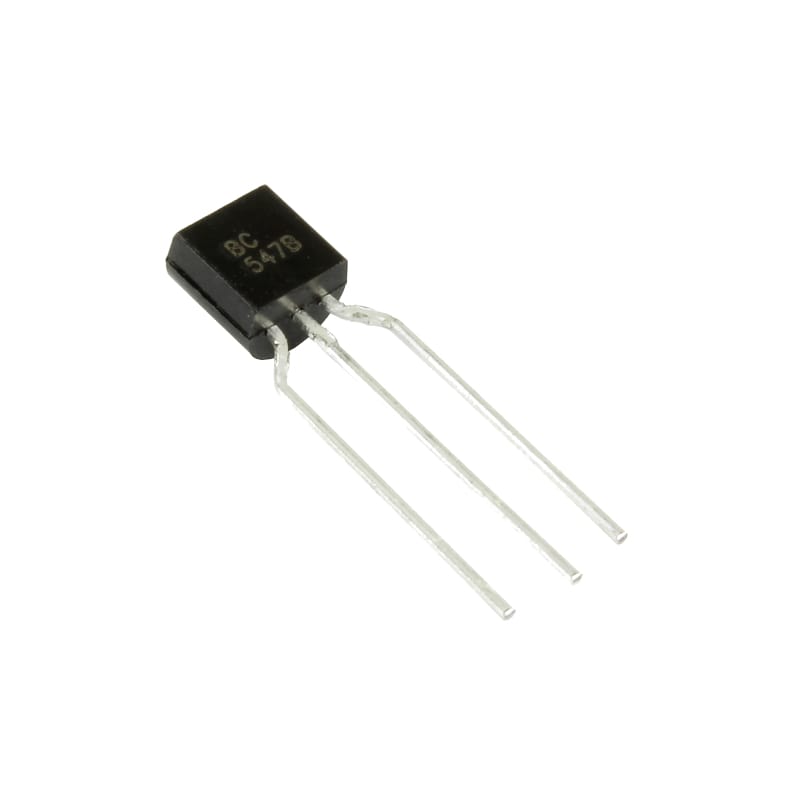

This is a BC547B NPN Bipolar Transistor, designed for use in linear and switching applications, and is housed in the neat TO-92 package.

In stock

Description

Low power transistor with epitaxial planar construction, designed for use in the driver stage of audio amplifiers. This is a BC547B NPN Bipolar Transistor, designed for use in linear and switching applications, and is housed in the neat TO-92 package. It’s especially suited for use in general signal processes, for example that of audio amplifiers, low noise input stages of tape recorders, HI-FI amplifiers and signal processing circuits for IR receivers. They can switch up to 45V @ 100mA continuous, or 200mA peak with a DC gain of 200.

Technical Details

  • Collector Emitter Voltage V(br)ceo: 45V
  • DC Collector Current Continuous: 100mA
  • DC Collector Current Peak: 200mA
  • DC Current Gain hFE: 200
  • No. of Pins: 3
  • Operating Temperature Max: 150°C
  • Power Dissipation Pd: 625mW
  • Transistor Case Style: TO-92
  • Transistor Polarity: NPN
  • Transition Frequency ft: 300 MHz

Additional information

Weight30 g
Dimensions2 × 9 × 4 cm
