20 PIN IC SOCKET

9.00

QUICK OVERVIEW

  1. 20 pins.
  2. JDEC compliant.
  3. Molded notch for proper orientation.
  4. Easy to insert and remove ICs.



In stock

SKU: RMT180001 Categories: , Tags: , ,

Description

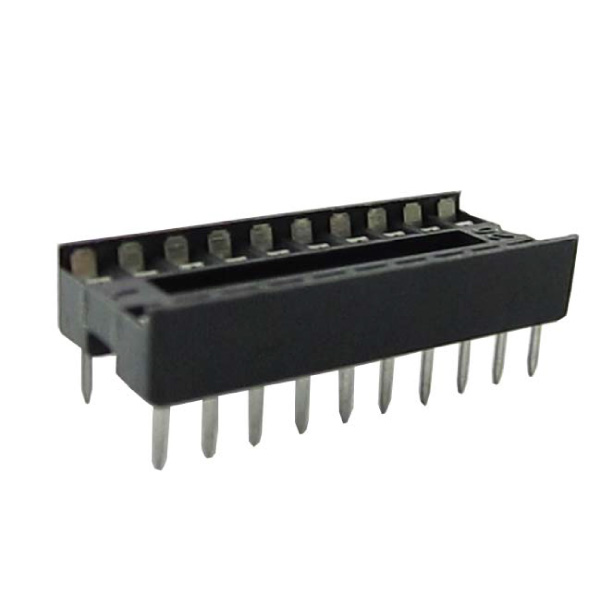

The 20 pin IC Socket/Base Acts as a removable 20 pin IC holder that can be soldered directly to the PCB while the IC remains interchangeable.

Required for sensitive ICs which are temperature sensitive and cannot be soldered to the board or at places where the IC needs to be replaced and for microcontroller-based applications where the IC needs to be removed for programming.

These are made from Black Thermoplastic and tin-plated alloy contacts. One end is notched to aid in identification. They can be mounted end to end to suit longer IC’s.

Features :

  • Overall height above PCB: 4.8mm
  • PCB hole required: 0.6mm
  • Pitch Width: 7.62mm (0.3in)
  • Pin Pitch: 2.54mm (0.1in)
  • pins: 20 pins

Applications :

  • Multiple DIY projects.
  • Application requiring replaceable ICS

Additional information

Weight50 g
Dimensions7 × 7.26 × 2 cm
