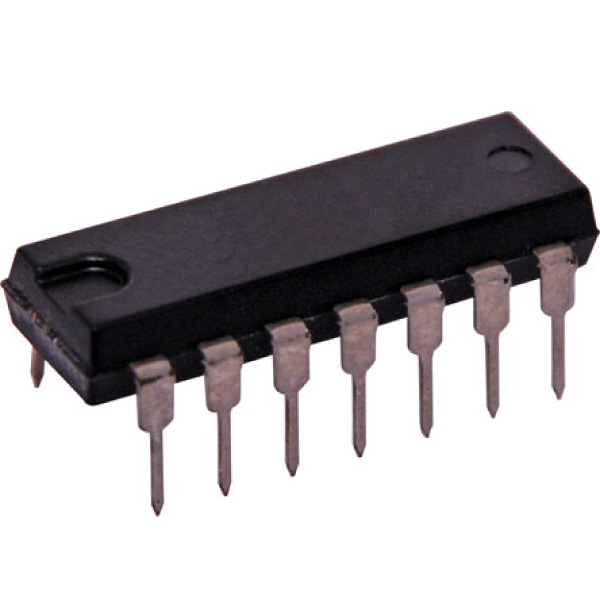

7432 IC INPUT OR GATE

18.00

  QUICK OVERVIEW
  • Gate Type: OR Gate
  • Number of Gates count in one IC: 6 Gates
  • Inputs Number per Gate: 1
  • IC Type: DIP
  • Number of pins: 14
  • Power Consumption: Low
  • Package Contains: Unused and checked 1 piece of 7432

In stock

SKU: RMT180008 Categories: ,

Description

7432 IC is member of 74xxx series gate ICs and has the functionality of OR gate or function. It will give high if either all or any of the input is high. 7432 has 4 OR gates of 2 inputs in 1 package.  The internal gates in the ICs are made of Schottky Transistor of low power. OR gate finds Maximum of 2 binary digits.

Boolean Expression   Y = A + B

Specification

  • Maximum Current that an output can draw: 8mA
  • Range of operating voltage: 4.75V to 5.5V
  • Maximum limit of voltage: 7V
  • Number of pins: 14
  • IC Type: DIP
  • Number of Gates count in one IC: 6 Gates
  • Inputs Number per Gate: 1
  • Power Consumption: Low

Additional information

Weight50 g
Dimensions10 × 4 × 50 cm
