A set of EasyMech 152mm Aluminium Mecanum wheels (Bearing type rollers)-(4 pieces)

23,690.00

QUICK OVERVIEW

  1. Size : 6″(152 mm) Diameter.
  2. Thickness of wheel : 45 mm.
  3. Weight : 530 gm.
  4. Plate Thickness : 2.5 mm.
  5. Side plates : Aluminum(High Grade alloy aluminium).
  6. Number of Plates per wheel : 2.
SKU: RMT200352 Category:

Description

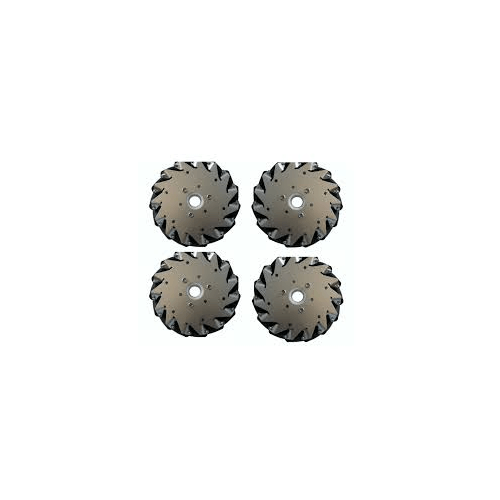

A set of EasyMech 152mm Aluminium Mecanum wheels (Bearing type rollers) package contain Two Left and Two Right side wheels which allow a robot to achieve omnidirectional movement while supporting large weights. The 6″(152mm)  Mecanum wheel utilize 15 rollers positioned between 2 plates.

The wheel is connected to its own, independent motor and driven independently. Every wheel includes a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.

Mecanum wheel using a standard chassis shape and powering each wheel with a different motor, which can be capable of moving in any direction, no need to change the directions the wheels spin. This design enables the wheel to propel your robot forward, backward and directly sideways.

EasyMech Wheels are http://www.tekparts.in/ new branded wheels.

Additional information

Weight2.6 g
Dimensions17 × 24 × 17 cm
